The era of subsidised, inefficient waste-to-energy is ending. If you are a waste manager, agricultural operator, or investor looking for a profitable, scalable alternative to anaerobic digestion and landfill, insect waste management is the only logical next step. Here is the complete technology stack required to build a profitable Black Soldier Fly (BSF) facility.
The insect farming industry has long positioned itself as the definitive solution to the climate crisis. The narrative is attractive: a circular economy champion that turns organic waste into high-quality sustainable protein and fertiliser. However, recent scientific scrutiny suggests that this promise is not always matched by reality. The sustainability of insect farming is not intrinsic. It is conditional.
For years, the industry has been dominated by massive, centralised European factories that require hundreds of millions in CAPEX and rely on pristine, pre-processed feedstocks rather than actual waste. This “Insect Farming 1.0” model is fundamentally flawed. It ignores the logistical nightmare of transporting wet waste over long distances and fails to address the needs of the regions that need protein and waste solutions the most, such as Africa.
At Flybox®, we are pioneering Insect Farming 2.0. We believe that insect waste management must be decentralised, modular, and deployed directly at the source of the waste. Whether you are looking to invest in insect farming UK operations or exploring insect farming in Kenya, success depends entirely on deploying the right insect farming technology for your specific climate and feedstock.
This guide breaks down the complete A-Z of insect farming technology and insect farming equipment from breeding and nursery design through waste processing, climate control, harvesting, drying, and oil extraction.
Watch the Full Video

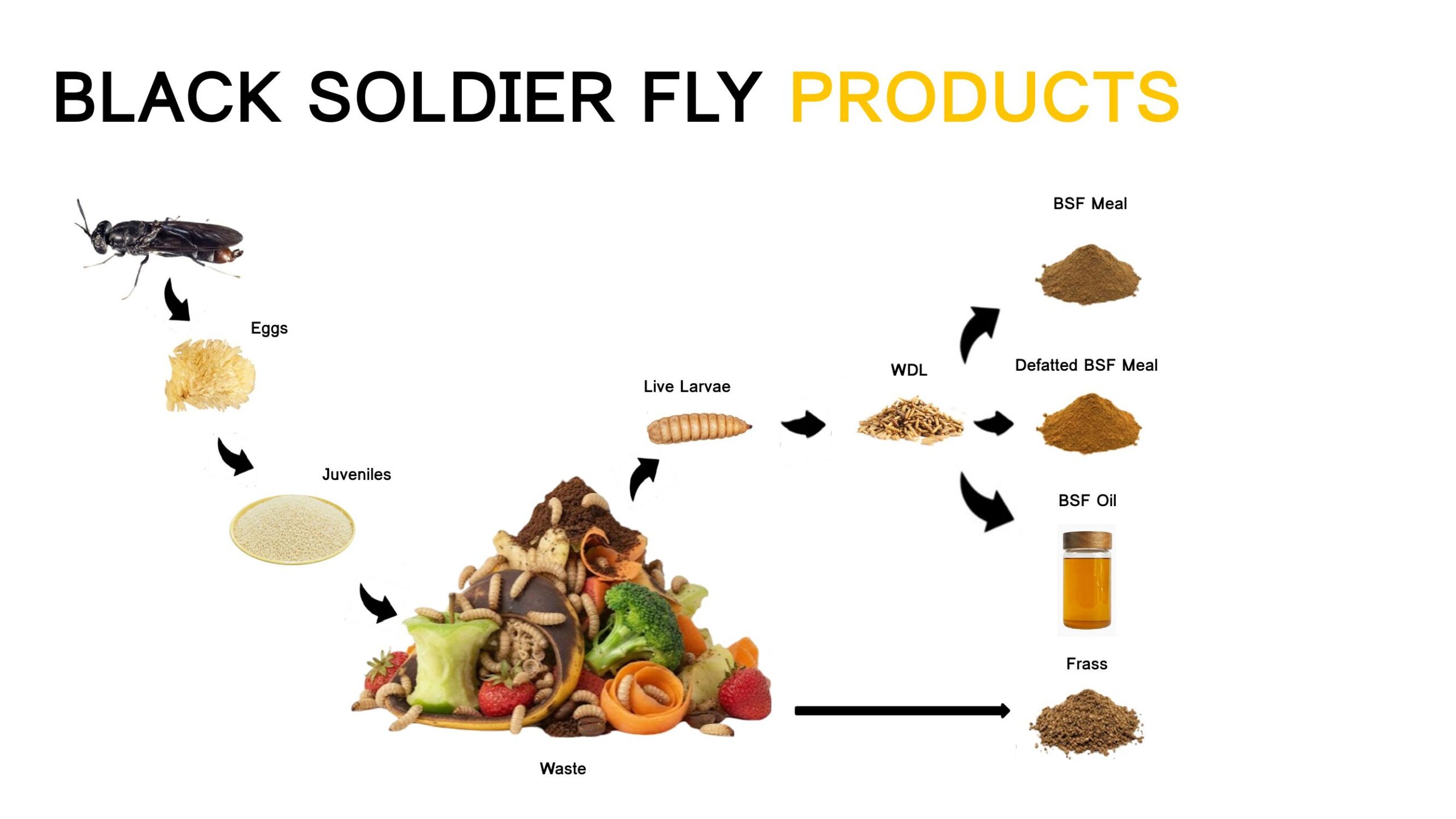

The Black Soldier Fly Lifecycle and Product Ecosystem
Before diving into the machinery, you must understand the biological engine driving the process: the Black Soldier Fly (Hermetia illucens). Unlike traditional livestock, BSF larvae are voracious consumers of organic matter, capable of reducing waste volume by up to 70% in just two weeks. This rapid bioconversion is what makes the black soldier fly business model so compelling.
The lifecycle is a continuous loop. Adult flies mate and lay eggs. These eggs hatch into neonates (juveniles), which are then inoculated onto a waste substrate. As they consume the waste, they rapidly gain mass, becoming mature live larvae.
The outputs of this bioconversion process are highly valuable commodities that serve multiple industries. BSF Meal is a high-protein ingredient for aquaculture and poultry feed, and the black soldier fly larvae nutrition profile is exceptional, offering a sustainable alternative to fishmeal and soy. Defatted BSF Meal is a concentrated protein powder created after oil extraction, offering an even higher protein density. BSF Oil is a lipid-rich oil used in animal feed, pet food, and cosmetics. And Frass, the residual insect manure, is a potent organic fertiliser that restores soil health and provides a secondary revenue stream for the insect farm.

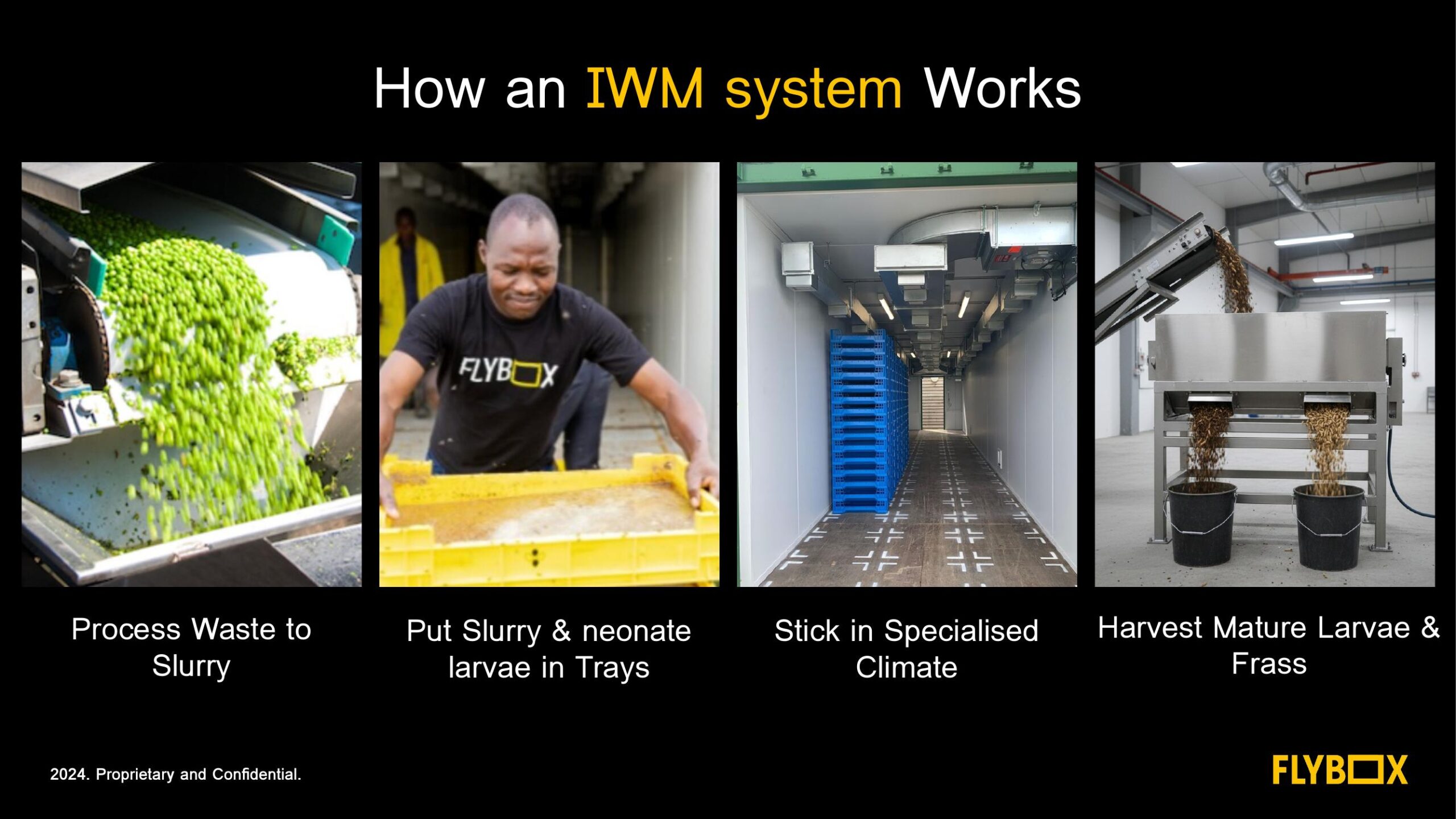

The Four Pillars of an Insect Waste Management System
A commercial insect farm is not a single machine; it is a complex, integrated system. At Flybox®, we categorise the operation into four distinct stages. Understanding these stages is critical for anyone developing a black soldier fly business plan.
The process begins with waste processing, where raw organic waste is mechanically reduced and blended into a homogenous, pumpable feed. Next comes inoculation, where the slurry is dispensed into rearing trays and neonate larvae are added. The trays then enter climate-controlled rearing, stacked in specialised climate rooms that replicate the tropical conditions BSF require for optimal growth. Finally, harvesting and processing separates the mature larvae from the frass, then dries and processes them into final products.

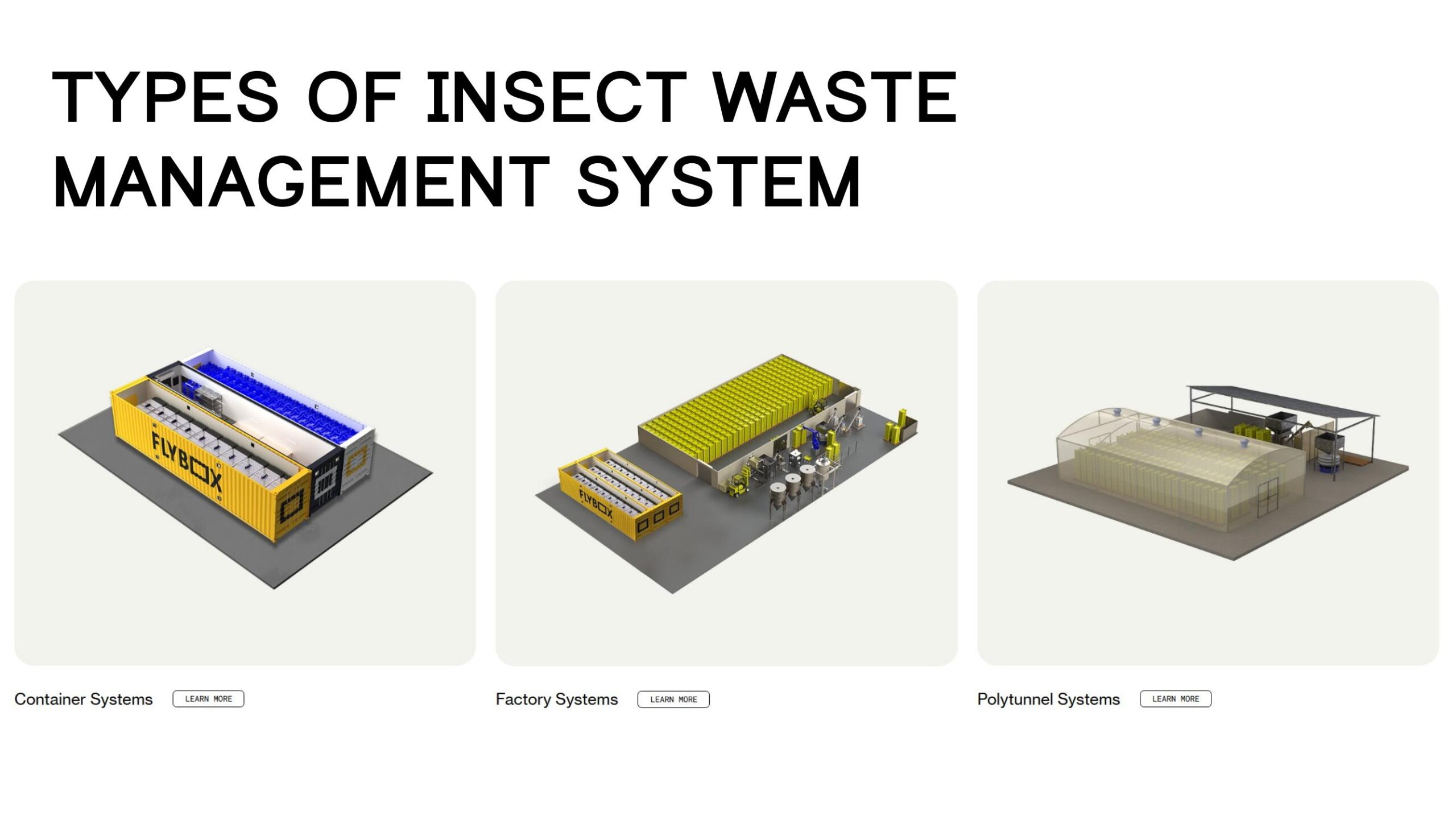

To accommodate different scales and environments, Flybox® has developed three distinct system architectures.
Container Systems are plug-and-play, modular units built into shipping containers. They are ideal for decentralised insect farming and processing waste directly at the source, such as supermarkets, small farms, or remote communities. If you are looking for an insect farm shipping container solution, this is the gold standard.
Factory Systems are large-scale, automated facilities designed for major waste handlers and municipalities looking for industrial insect farming solutions. These are purpose-built for high throughput and maximum efficiency.
Polytunnel Systems are low-CAPEX, passively ventilated structures specifically engineered for hot climates like Kenya, drastically reducing energy costs while maintaining high yields. They represent the future of accessible insect farming for developing economies.

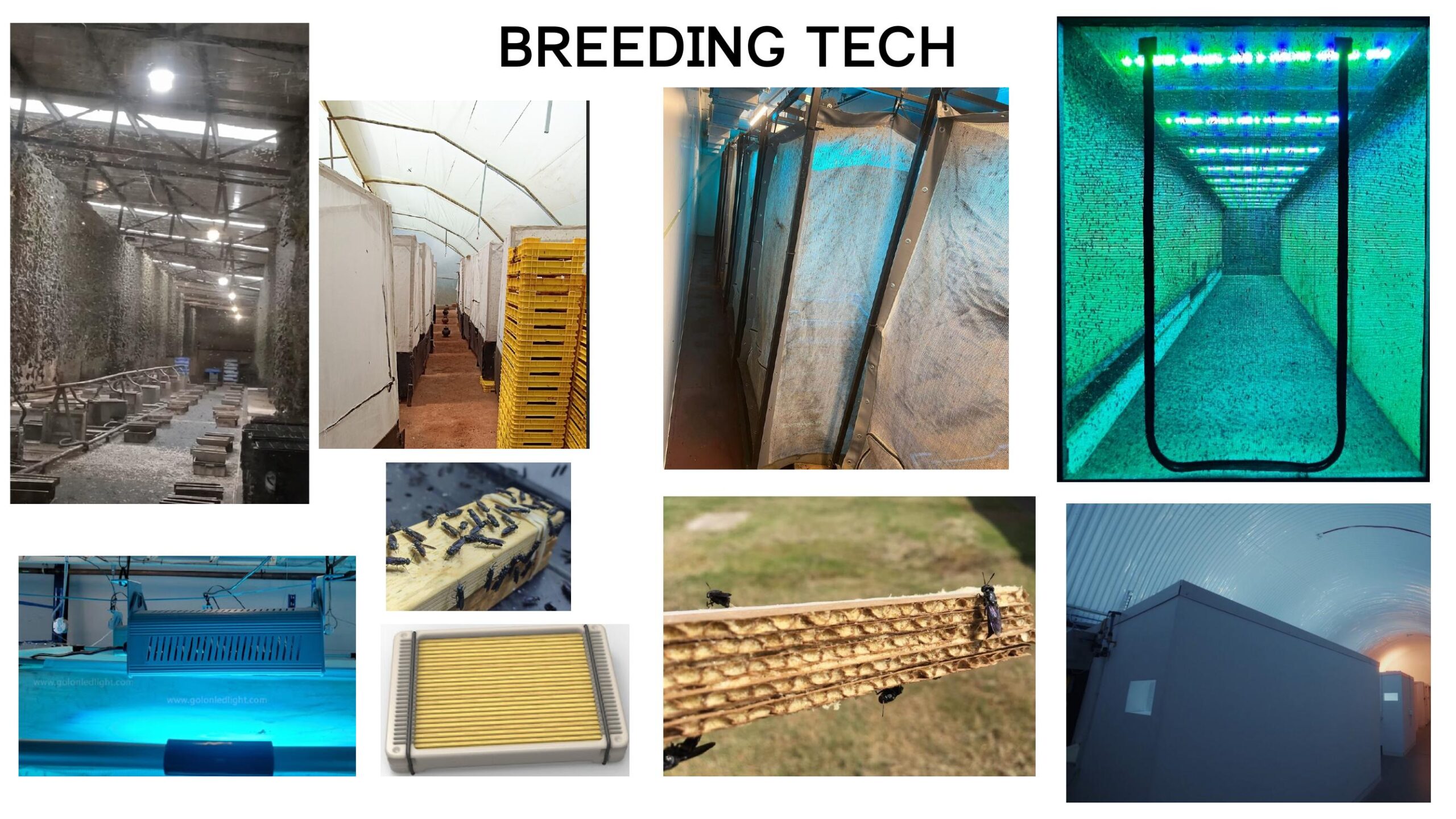

Breeding and Nursery Technology: The Engine Room
You cannot run a profitable insect farming business without a reliable supply of neonates. Relying on purchasing black soldier fly eggs for sale from third parties introduces unacceptable supply chain risk and erodes margins. You must control your own breeding.
The breeding room is where adult flies mate and lay eggs. This requires highly specific environmental conditions. The insect farming equipment involved includes love cages (specialised mesh enclosures that provide the necessary space and airflow for mating swarms), actinic lighting (custom LED arrays that mimic tropical sunlight, ensuring high mating rates even in indoor, UK-based facilities), and egg traps (corrugated structures designed to mimic the natural crevices where female flies prefer to oviposit).
Once harvested, eggs are transferred to the nursery. Here, they are incubated in highly controlled micro-climates until they hatch into neonates. The nursery utilises high-density racking systems and precise dosing equipment to provide the initial, highly nutritious feed required to give the larvae a strong start before they are introduced to the main waste stream. This early-stage care is critical for maximising the final black soldier fly nutritional value.
Waste Processing: Turning Trash into Feed
The biggest misconception in the industry is that you can simply dump raw food waste onto a pile of larvae. You cannot. To achieve efficient bioconversion, the waste must be engineered into a specific physical and nutritional profile.
The waste processing line is the most mechanically intensive part of the facility. Intake hoppers and conveyors receive bulk organic waste from trucks or bins. Hammer mills and shredders reduce the particle size, breaking down tough cellular structures and increasing the surface area for the larvae to consume. Paddle mixers blend different waste streams to achieve the optimal moisture content (typically 70-80%) and nutritional balance. And liquid handling systems (pumps and holding tanks) manage the final slurry before it is dosed into the rearing trays.

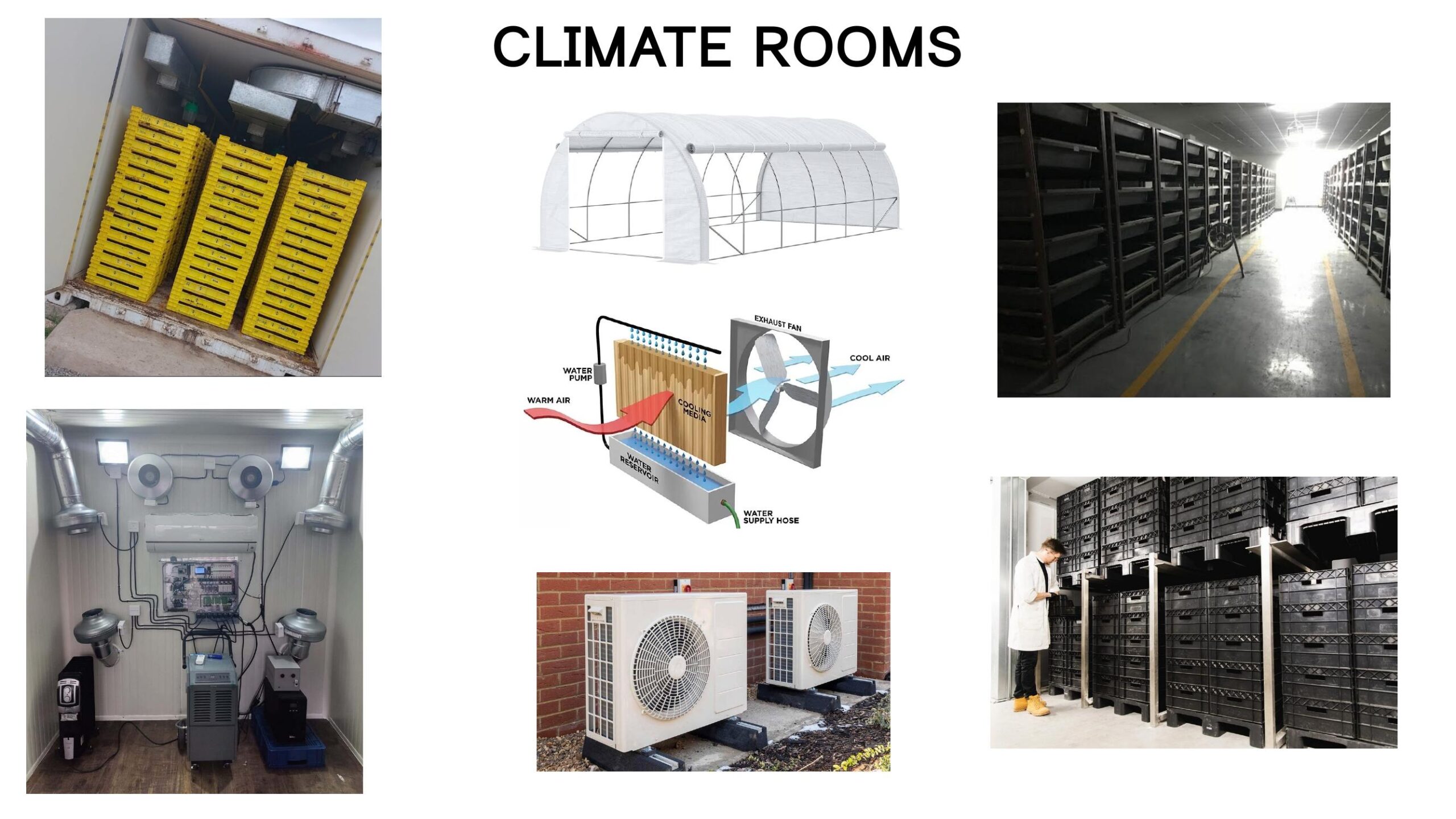

Climate Control: Replicating the Tropics
Black Soldier Flies are tropical insects. If you are operating an insect farm in London or anywhere outside the tropics, you must artificially create their ideal environment: roughly 30°C and 70% relative humidity.
The metabolic activity of millions of larvae generates massive amounts of heat and moisture. The climate control system must not only heat the room initially but also aggressively cool and dehumidify it as the larvae grow. In factory and container systems, Flybox® uses advanced air handling units and ventilation systems ensuring even air distribution across the tray stacks and preventing hot spots that can kill larvae. You can move to an advanced Plenum system favoured by many insect engineering companies, however the cost (Both in CAPEX and OPEX) are higher for these systems. For polytunnel systems in hotter climates, we utilise low-energy evaporative cooling pads and exhaust fans to maintain temperatures without the massive electricity draw of traditional air conditioning. Knowledge of your local climate (Site specific, not country averages) is incredibly important fr success in managing the upfront and ongoing costs of managing BSF climates.

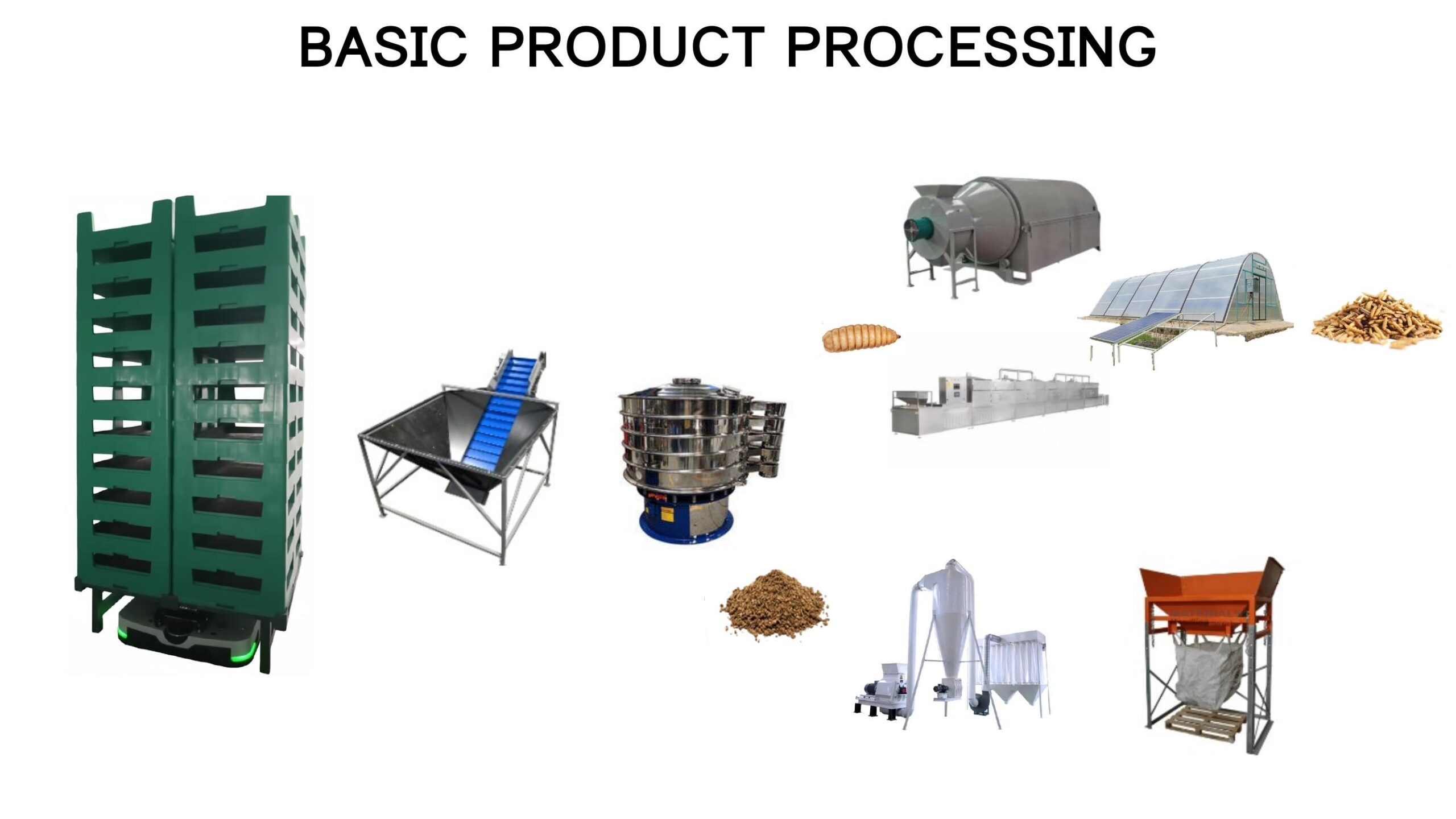

Product Processing: From Larvae to High-Value Commodities
After 10-14 days, the larvae have consumed the waste and are ready for harvest. The first step is separation.
Vibratory sieves separate the live larvae from the frass, which is collected in bulk bags and sold as organic fertiliser. The live larvae are highly perishable and must be dried immediately to create Whole Dried Larvae (WDL). Depending on the scale and CAPEX budget, this is achieved using microwave dryers (fast, high quality, high CAPEX), drum dryers, or even solar drying structures in appropriate climates.

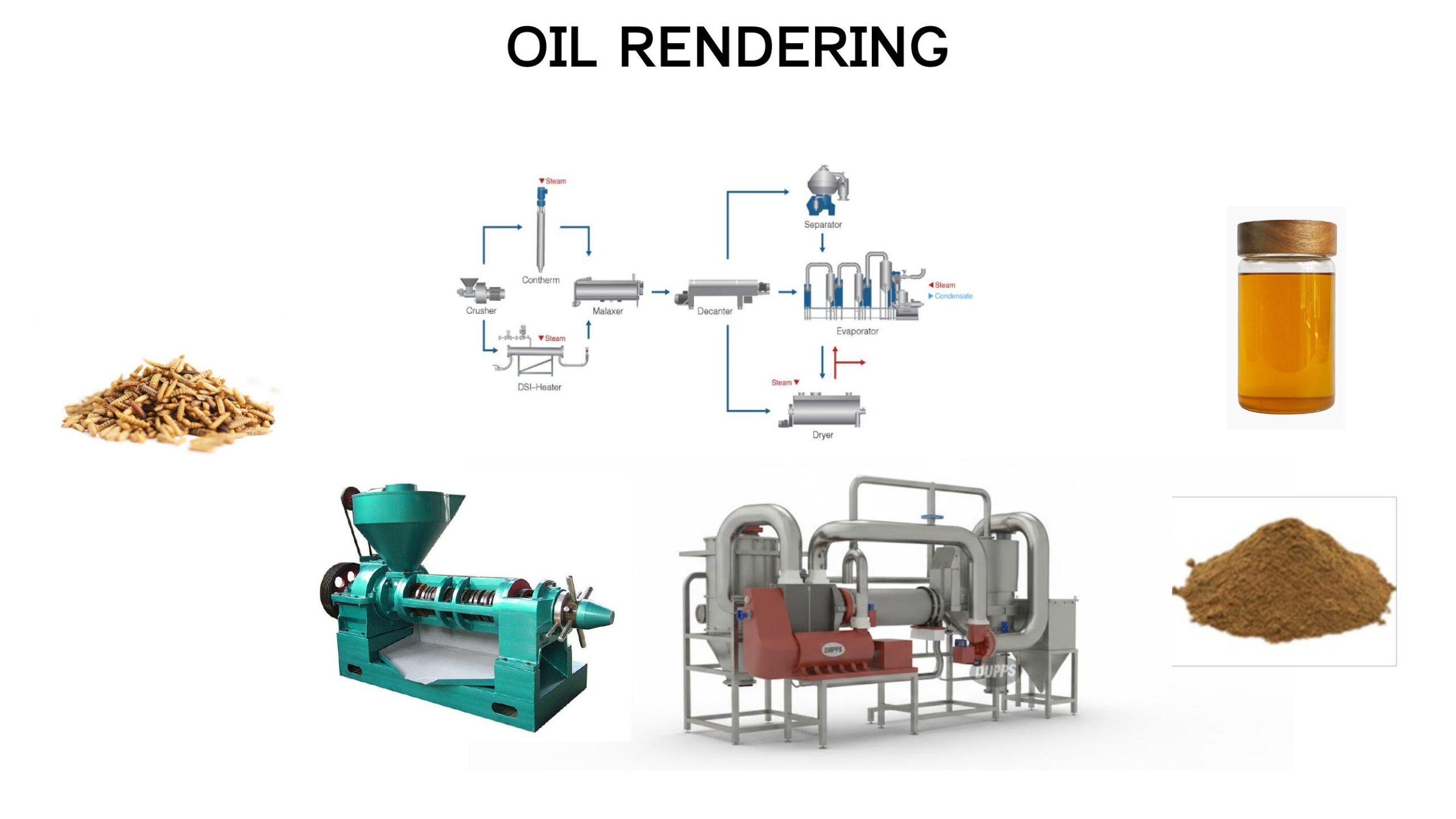

To maximise profitability, many facilities take the processing one step further by extracting the valuable lipids from the dried larvae.
This is achieved using industrial screw presses (expellers). The WDL is heated and forced through a mechanical press under immense pressure. This separates the product into two distinct streams: BSF Oil, a premium lipid product, and Defatted BSF Meal, a dry cake that is milled into a fine, high-protein powder. This defatted meal has a longer shelf life and a higher protein concentration than whole dried larvae, making it highly sought after by the aquafeed industry.
The Economics: Is Insect Farming Profitable?
The question on every investor’s mind is: is insect farming profitable? The answer is yes, but only if the unit economics are fundamentally sound. The “Insect Farming 1.0” model, reliant on massive centralised facilities and expensive, clean feedstocks, struggles to achieve profitability without heavy subsidies.
Profitability in Insect Farming 2.0 hinges on three factors. First, zero-cost or negative-cost feedstock: you must be paid to take the waste (tipping fees), or the waste must be a free by-product of your existing operations. Second, appropriate CAPEX: do not over-engineer; a robotic arm is useless if a simple conveyor belt achieves the same result for a fraction of the cost. Third, localised technology: deploying a highly insulated, energy-intensive container system in a tropical climate is a waste of capital. You must match the technology to the environment.
By focusing on decentralised, modular systems, Flybox® drastically reduces the logistical costs associated with transporting wet waste. Our hub-and-spoke insect farming model allows for waste to be processed locally, with the high-value end products consolidated for sale.
The Flybox® Advantage: Pragmatic Engineering
The problem with existing automated insect farming technology is that it is often over-engineered, outdated, and rigidly designed for European climates and pristine feedstocks. Robotic arm-based systems look impressive in pitch decks, but they are rarely profitable in real-world waste management scenarios.
At Flybox®, we build solutions for the reality of waste. We understand that localisation to the existing climate and the specific waste stream is critical. Whether you need a modular insect factory to process supermarket waste in the UK, or a low-cost polytunnel system to upcycle agricultural by-products in Kenya, we provide the pragmatic, data-driven engineering required to make insect farming profitable.
Stop treating organic waste as a liability. It is a feedstock.
